Custom RABS FFU Sets And Control Systems

Base RABs FFU specification

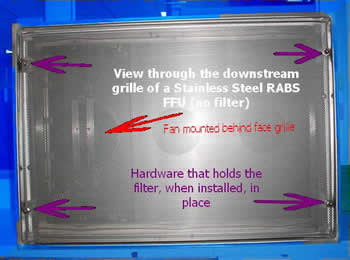

304 Stainless Steel FFU body and removable face screen, #4 finish

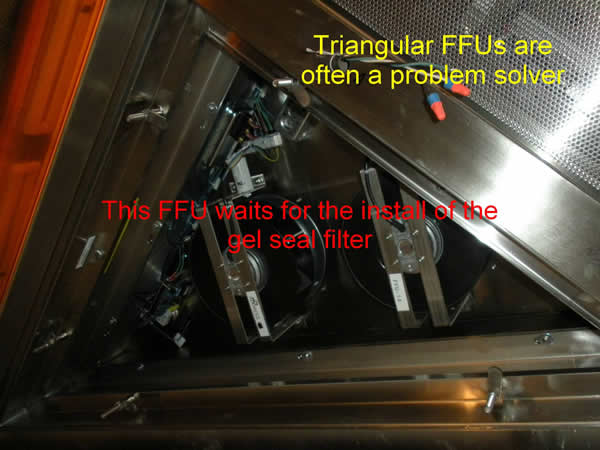

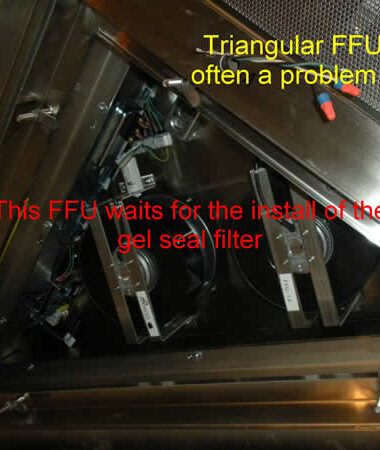

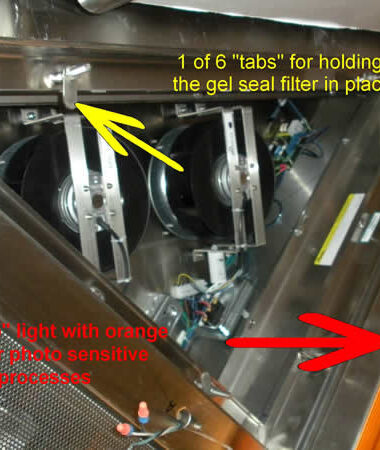

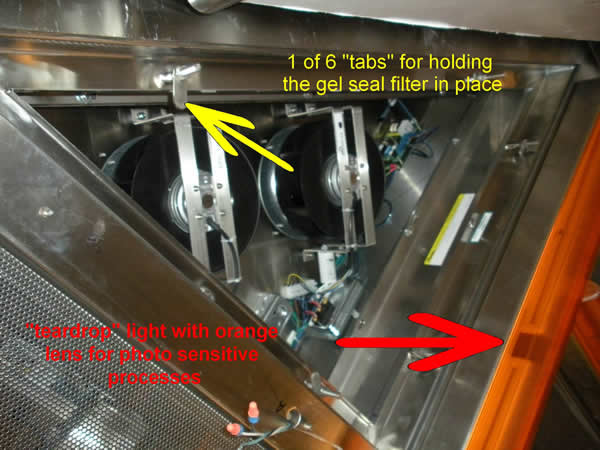

Room Side Replaceable (RSR) Gel Seal 99.99% @ 0.3 HEPA filter with anodized aluminum filter frame and 304 SS in #4 finish
EBM Single phase 115V Fans specified to produce 90 FPM at 6” below the filter face screen with 1.0” total system static pressure
All components in the system serviceable from inside the FFU

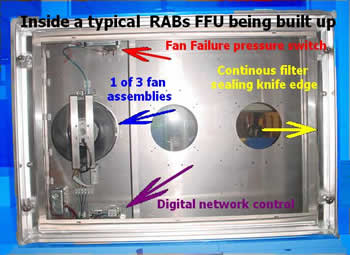

Normally closed Fan Failure switches on each fan in the system
Addressable network fan control
Dual downstream test ports

List of standard options:

Anodized Aluminum or 316/316L Fan housing
304 or 316/316L Stainless steel filter frame
RPM Sensors on one fan per FFU
Filter differential pressure sensor (analog or digital)
High capacity FFU with as much as 125 FPM @ 1.5” total system pressure
Top access FFU
230V Fans/1 phase
EC Fans

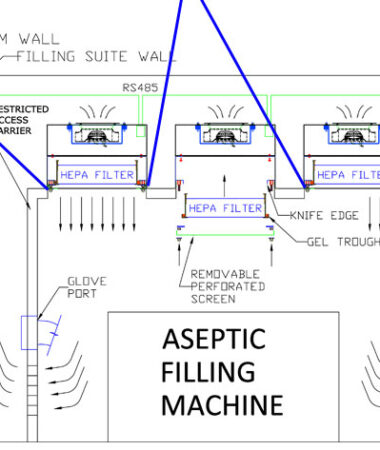

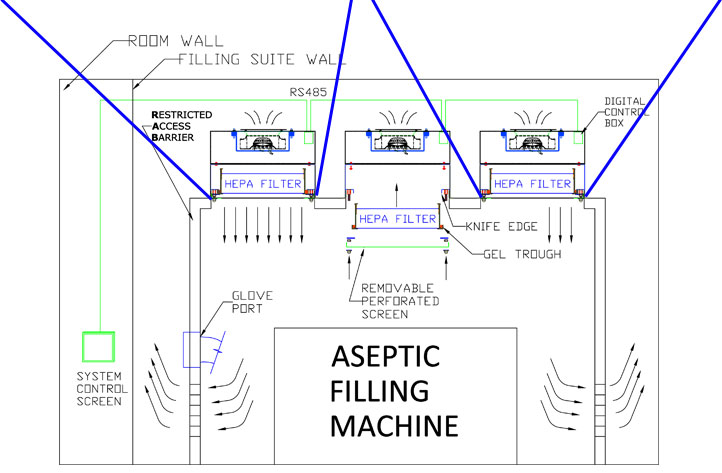

HEPA/ULPA FFUs for Active and Closed RABS applications (PDF presentation)

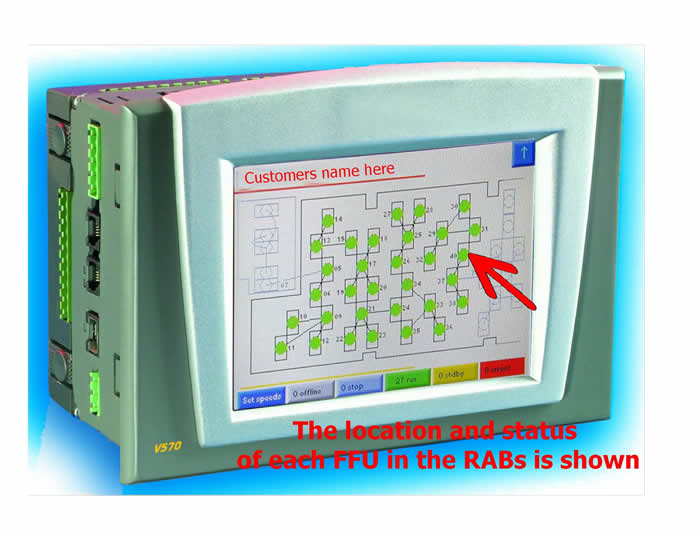

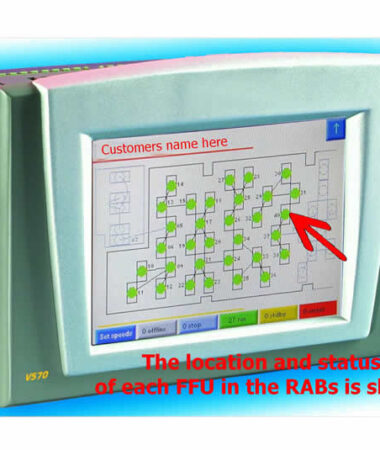

For each RABS there is a Master Controller that the FFUs can be accessed from, and reports the status of the individual FFUs. The Master Controllers come in a variety of price points depending on;

The number of FFUs controlled
The customers desire for detail in the display
Whether the customer desires a screen that has been customized for their project
Whether web accessibility is required
Whether paging upon a any alarm condition is required

The function of this controller is to allow easy access to adjusting fan speed control for final balancing, while displaying the status of each FFU during day to day operations.

Virtually unlimited additional options available, per the job.
